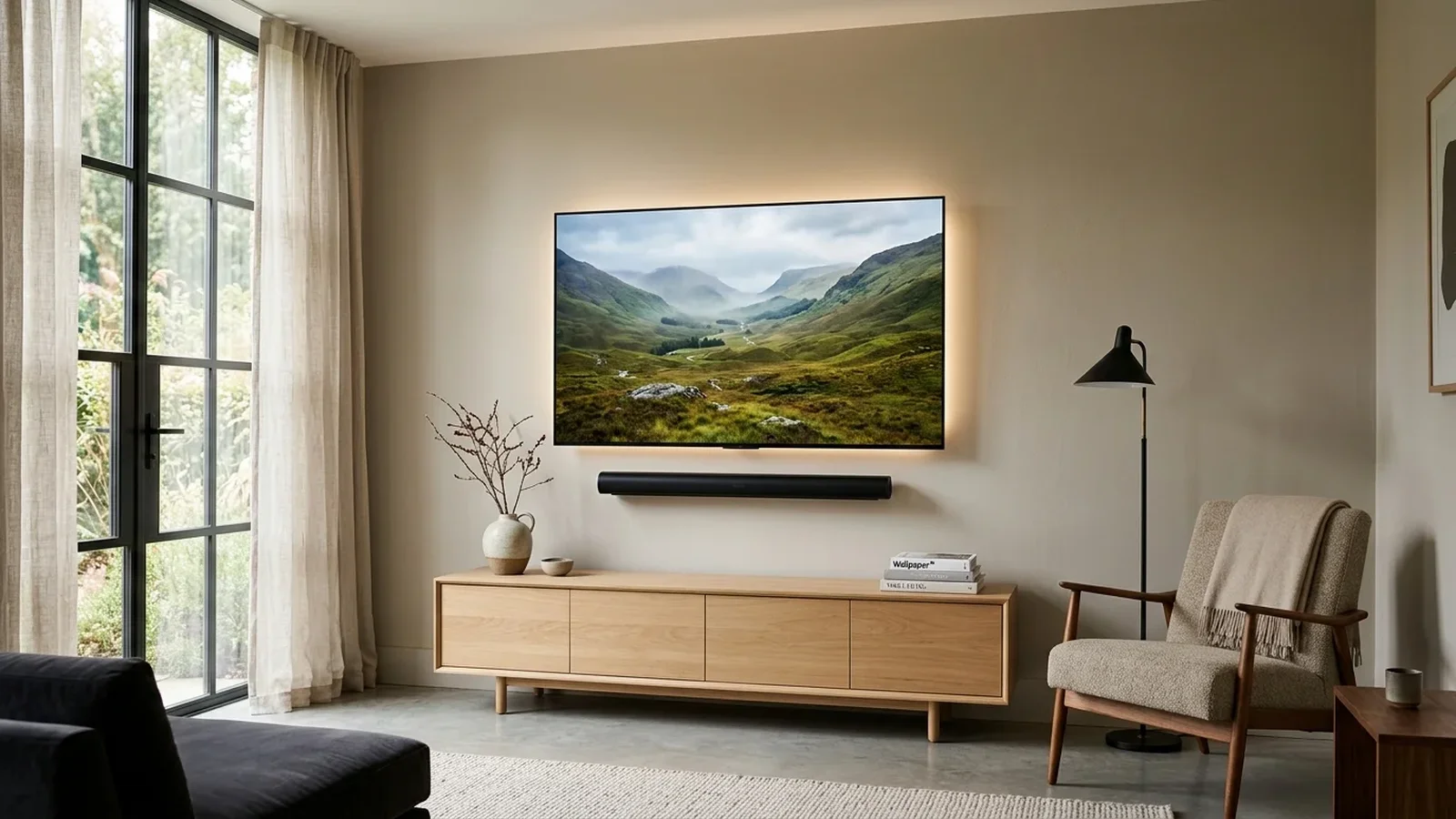

Professional TV Wall Mounting In Pleasington • Hidden Cabling & 120kg Steel Fixings
Architectural TV wall mounting for 32" to 98" OLED, QLED, and Neo-QLED screens across Pleasington and surrounding districts. Secured with 120kg-rated steel anchors and invisible in-wall cabling.
“Friendly, knowledgeable and tidy install. Gary knows his craft inside out — transparent pricing, spotless work and tested to perfection.”
Verified Customer • Checkatrade ReviewEngineered Mounting For Pleasington's Architectural Substrates
Pleasington's prestigious residential landscape combines historic Georgian country houses on Pleasington Lane and Victoria Road with modern architect-designed executive mansions near Pleasington Golf Club. Mounting a 40kg to 65kg modern screen requires precision structural diagnosis of the wall substrate behind the plaster.
Solid Sandstone & Gritstone
Period properties around Butler's Delph, Church of St Mary, and old estate cottages feature thick Pennine gritstone. We utilize diamond SDS core bits to bypass friable lime mortar joints, embedding heavy-duty Fischer DuoPower nylon sleeves and high-tensile steel coach screws directly into load-bearing stone.
Dot-and-Dab Plasterboard
Modern detached residences on Sandy Lane feature plasterboard affixed with adhesive dabs over lightweight thermalite aerated blockwork, creating a 15-25mm hollow void. Standard plastic wall plugs will bow or crack the plasterboard. We install CoreFix structural steel sleeve anchors that bridge the gap directly into the masonry.
Stud Partition Walls
For internal partition walls dividing living spaces or bedrooms, we locate timber studs with precision multi-depth electronic sensors. The bracket is anchored directly into the structural timber centres with structural timber drive screws, reinforced with Geefix heavy-duty cavity anchors where central alignment requires bridging.
Precision Brackets For Every Viewing Angle
We stock commercial-grade cold-rolled steel bracket systems engineered for screens from 32 inches to 98 inches. Every bracket is chosen to suit your room layout, eye-level seating geometry, and natural light sources to eliminate glare.
Ultra-Slim Flush Mount
From £89.99 + VATSits just 15mm from the wall for a seamless, floating picture-frame aesthetic. Ideal for dedicated lounge focal walls and Samsung The Frame displays.
Anti-Glare Tilt Mount
From £119.99 + VATOffers up to 15 degrees of downwards fingertip tilt. Essential for chimney breast installations above fireplaces to ensure optimal viewing angles without neck strain.

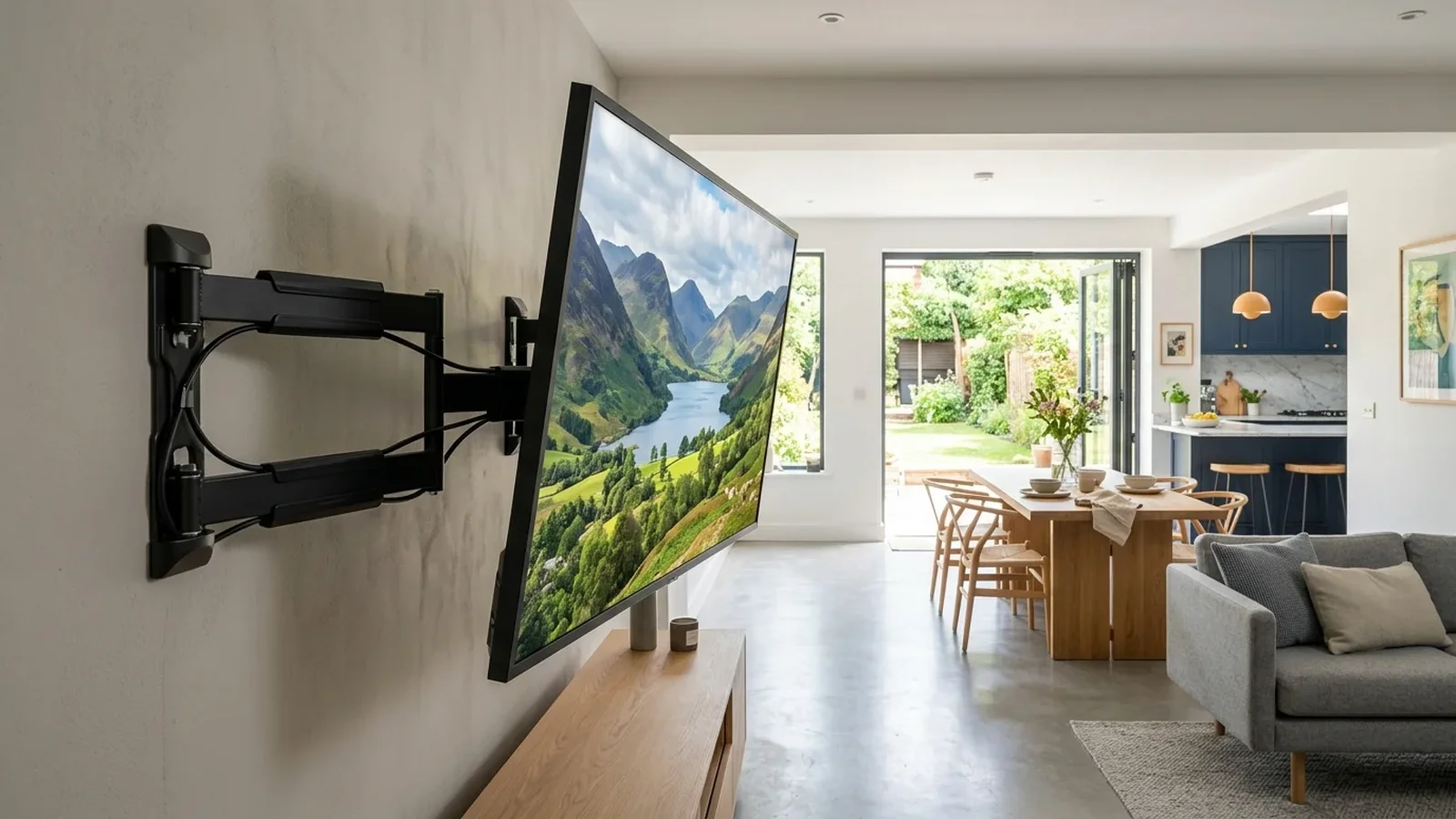

Heavy-Duty Full-Motion Cantilever
From £169.99 + VATTwin-arm articulated bracket extending up to 600mm from the wall with 180-degree swivel. Perfect for open-plan kitchen-diners and corner viewing positions.

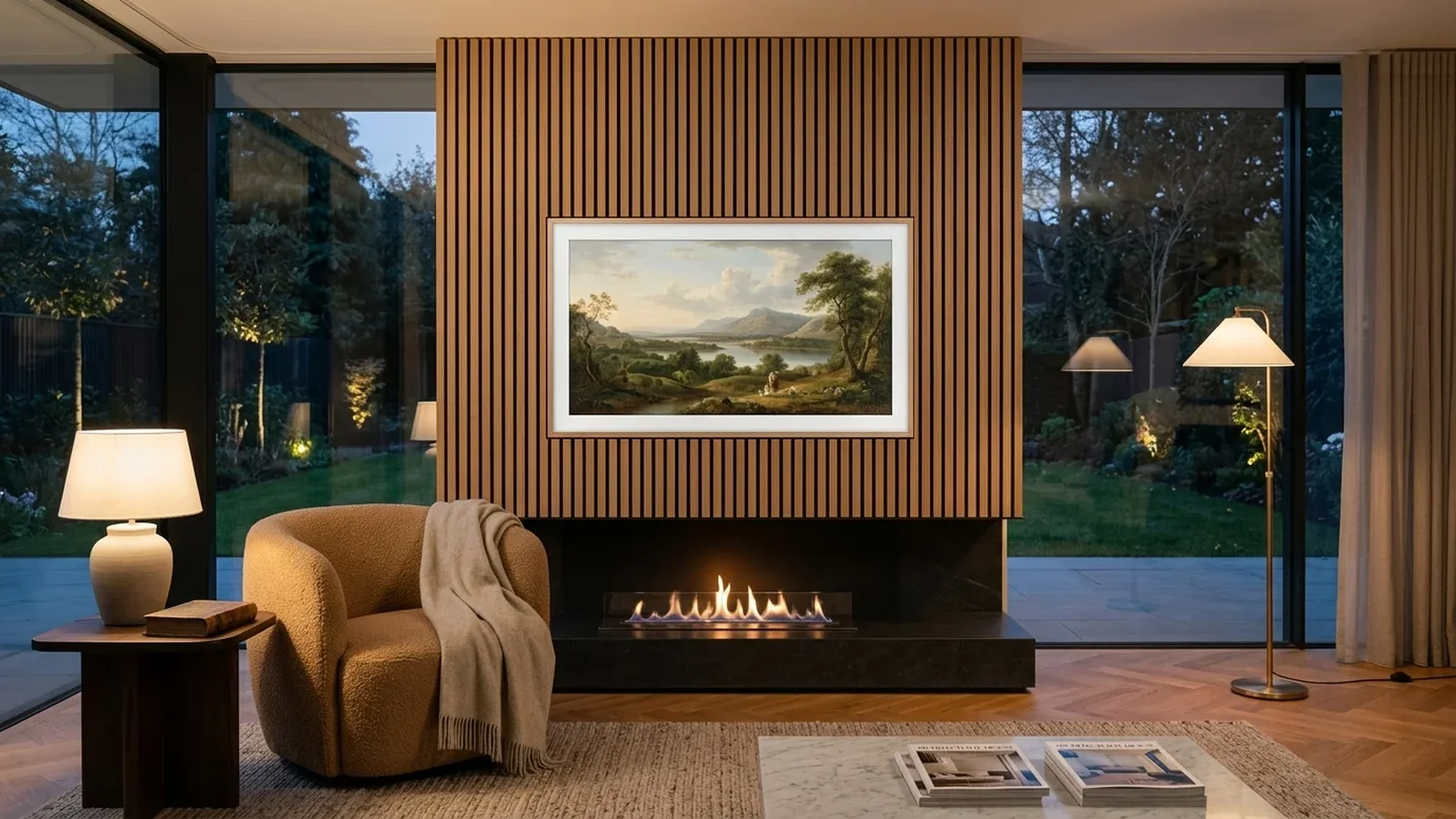

Samsung The Frame & OLED Gallery Specialist
The Samsung Frame and LG G-Series OLED Gallery TVs are designed to blend into high-end architecture as framed works of art. Achieving the true flush profile requires specialized bracket calibration and bespoke cable management.
- ✓ Zero-Gap Slim Fit Alignment: We precision-level the proprietary dual-hanger plates to ensure the TV sits completely flat against the wall without shadows.
- ✓ Invisible Fibre Routing: The delicate Samsung One Invisible Connection fibre cable is safely routed through concealed wall drops to protect it from sharp masonry bends.
- ✓ Recessed One Connect Enclosures: We fit in-wall media boxes behind the screen or route the umbilical lead down into bespoke low-level AV cabinetry.

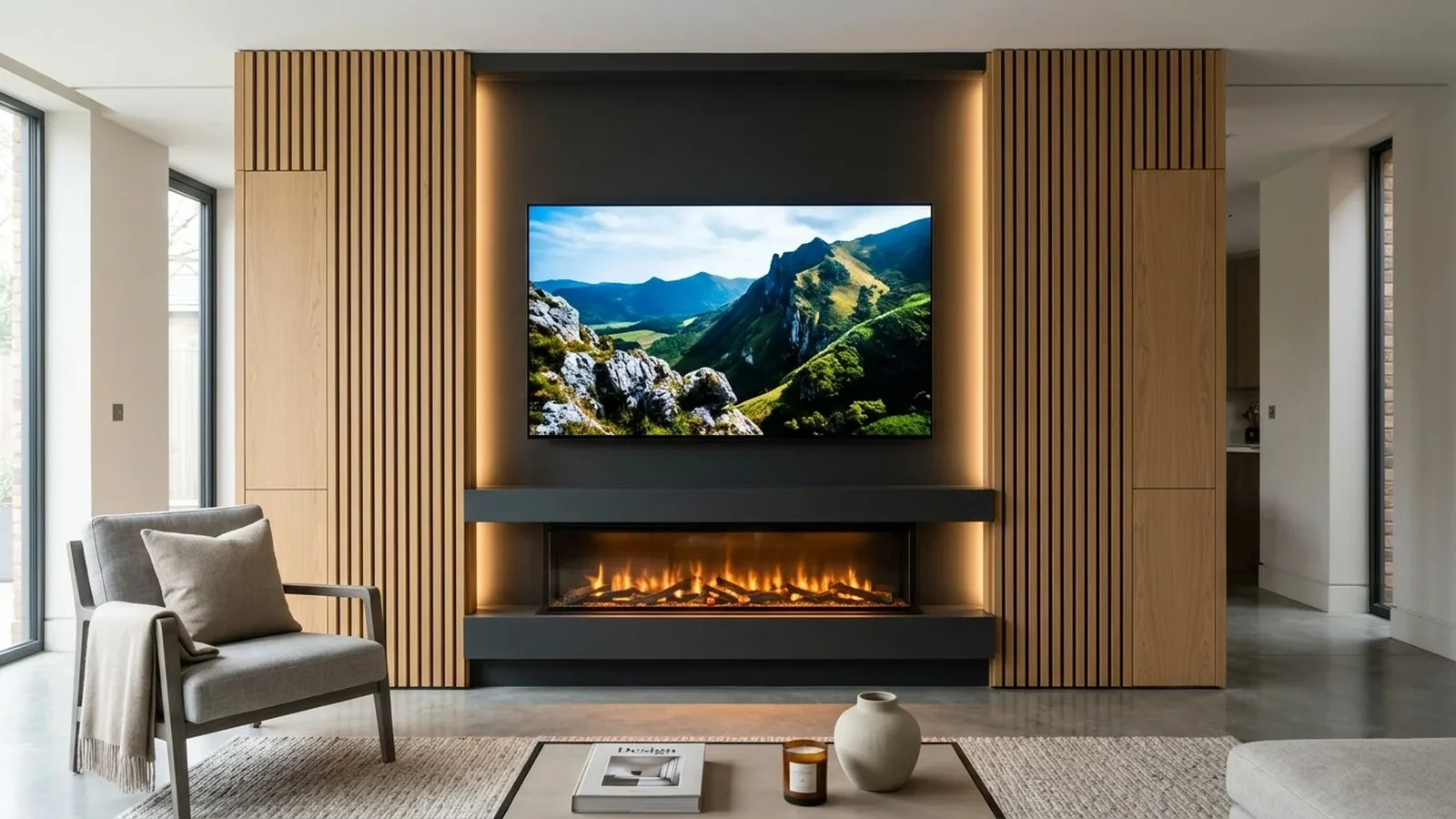

Custom Timber Media Walls & Acoustic Panelling
A bespoke media wall transforms your main living space into a cinematic focal point. We collaborate with homeowners, interior architects, and joiners across Pleasington to deliver complete media wall AV integration.
Recessed Screen Chambers
Precision-framed stud cavities allowing your OLED or Mini-LED TV to sit flush with the front plasterboard or acoustic wood face.
3-Sided Panoramic Electric Flame Integration
Safe structural separation and heat-deflecting framing between panoramic LED fireplaces and delicate display electronics.
Acoustic Oak Slat Panelling
Modern acoustic felt-backed timber slats fitted around the screen recess to enhance room acoustics and eliminate screen reflection.
Zero Visible Wires: In-Wall, Chased & Trunked Solutions
The difference between an amateur TV hanging and a high-end installation is how the cables are routed. We provide three distinct concealment methods matched to your decorative finish and budget.
Cavity Wall In-Wall Drop
For stud walls and plasterboard cavities, we install twin brush faceplates behind the screen and near skirting level. High-speed 48Gbps HDMI 2.1, power, and optical cables drop invisibly through the cavity.
Solid Masonry Channel Chasing
For solid stone or brick walls requiring complete invisibility, we cut a clean vertical channel with dust-extraction cutters, lay high-impact conduit, and apply bonding and multi-finish plaster flush with the wall.
Paintable D-Line Trunking
A non-invasive, cost-effective solution for freshly painted rooms. We fit slim, curved D-Line micro-trunking directly onto the wall surface, colour-matched to your paintwork to blend into the background.
Transparent TV Wall Mounting Packages
Every installation includes professional survey, laser alignment, heavy-duty commercial fixings, and TV tuning. No hidden travel surcharges or unexpected extras.
Ultra-Slim Flush Mount
Designed for screens up to 55 inches on stud or masonry walls where the screen is viewed directly head-on.
- ✓ Slim flush steel bracket included
- ✓ Fischer DuoPower masonry anchors
- ✓ Precision dual-plane spirit levelling
- ✓ Input and Freeview tuning check
Anti-Glare Tilt Package
Perfect for screens up to 75 inches mounted higher on chimney breasts, over fireplaces, or in master bedrooms.
- ✓ Heavy-duty tilt bracket included
- ✓ 0° to 15° tool-free vertical angle
- ✓ CoreFix steel sleeve anchors
- ✓ In-wall cable drop or D-Line trunking
Full-Motion Cantilever
Full articulation for screens up to 98 inches in open-plan spaces, corner alcoves, or multi-zone family lounges.
- ✓ Dual-arm heavy-duty articulated arm
- ✓ 180° swivel & 600mm extension
- ✓ Structural stone / blockwork anchoring
- ✓ Articulated cable management spines
Our 4-Stage Precision Fitting Process
Every installation is executed methodically by qualified engineer Gary Pearce to ensure complete structural safety and visual elegance.
Laser Survey
We scan for internal pipes and electrical cables using multi-sensor detectors and set laser line levels for optimal viewing height from your main seating position.
Structural Anchoring
We drill with dust collection, inserting substrate-specific fixings (CoreFix for dot-and-dab or Fischer DuoPower for solid stone) to ensure zero pull-out risk.
Cable Concealment
We route all HDMI 2.1, optical, aerial, and power leads through in-wall conduits or discreet colour-matched trunking with zero tension on ports.
Calibration & Demo
The screen is safely hung, micro-adjusted for millimeter horizontal level, connected to your AV source devices, and tested for picture and sound clarity.
Serving Pleasington & Surrounding Lancashire Enclaves
From our Blackburn base, Gary Pearce provides rapid response TV wall mounting across Pleasington and neighbouring districts:
TV Wall Mounting Questions Answered
Technical advice and clear guidance on installations across Pleasington.
Can you mount a 75-inch or 85-inch screen onto a historic sandstone wall in Pleasington?
Yes. Period country houses on Pleasington Lane and Victoria Road feature solid gritstone and sandstone masonry. We drill directly into the structural stone using diamond-tipped SDS bits, avoiding soft lime mortar lines, and seat heavy-duty Fischer DuoPower nylon expanding anchors with M8 coach screws rated for upwards of 120kg.
How do you mount televisions safely onto modern dot-and-dab plasterboard in Pleasington?
Modern executive extensions near Pleasington Golf Club frequently feature plasterboard adhered over thermalite blockwork with an adhesive void of 15mm to 25mm. We never rely on standard hollow wall anchors. Instead, we use CoreFix heavy-duty structural steel sleeve fixings that transfer the cantilever load directly into the solid blockwork behind without crushing the plasterboard.
Can cables be completely concealed in-wall on a luxury media wall?
Yes. In timber-framed media walls, cables run internally through flame-retardant 50mm brush-plate conduits. For solid masonry walls, we offer precision dustless channel chasing to embed conduits, finished flush with bonding and multi-finish plaster, or slimline paintable D-Line trunking.
Can you mount a Samsung The Frame TV completely flush with invisible cabling?
Yes. We install Samsung The Frame televisions using the manufacturer's bespoke Slim Fit wall mount, securing the bracket with micro-level calibration. We route the ultra-thin One Invisible Connection fibre cable through wall cavities or recessed media back-boxes to conceal the One Connect box out of sight.
How much does professional TV wall mounting cost in Pleasington?
Our transparent packages start from £89.99 + VAT for ultra-slim flush mounting, £119.99 + VAT for tilt brackets, and £169.99 + VAT for heavy-duty full-motion cantilever articulated arms. All installations include commercial-grade fixings and precision laser levelling.
Do you supply the mounting brackets or can I provide my own?
We supply high-grade, weight-certified cold-rolled steel brackets suited for your screen size and VESA pattern. If you have already purchased your own bracket, we will inspect its structural integrity and install it using commercial-grade wall fixings.
What height should my television be mounted above the floor?
The ideal viewing height places the centre of the screen at eye level when seated in your primary sofa, typically 95cm to 110cm from floor level. For screens positioned above mantelpieces or fireplaces, we fit a downwards tilt bracket to relieve neck strain.
Are Gary's installations backed by a warranty and insurance?
Yes. Every installation is protected by our comprehensive 5-year workmanship guarantee and supported by £10 Million Public Liability Insurance, providing total peace of mind for high-value screens and historic stone properties.
Can soundbars and streaming boxes be mounted underneath the TV?
Yes. We mount Sonos Arc, Beam, and Bose soundbars using custom vibration-damped wall brackets or bracket extensions linked directly to the TV frame. Sky Q, Apple TV, and games consoles can also be mounted invisibly behind the screen.
How quickly can an engineer attend my property in Pleasington?
We offer prompt weekday appointments across Pleasington and neighbouring Blackburn villages, frequently accommodating next-day and emergency same-week bookings for new screen deliveries and renovations.
Ready For A Flawless TV Wall Installation In Pleasington?
Contact Gary Pearce today for friendly technical advice, bracket recommendations, or to arrange your booking.
