Digital TV Aerial Installation In Shadsworth, Blackburn BB1
Restore crystal-clear Freeview HD reception across your Shadsworth home. Certified aerial and satellite engineer Gary Pearce installs high-gain benchmarked digital TV aerials aligned directly to Winter Hill, incorporating high-rejection 4G/5G LTE filters, double-screened WF100 copper cabling, and storm-rated chimney lashings for dependable television viewing across Blackburn BB1.
High-Gain Digital Aerial Aligned to Winter Hill with Stainless Chimney Lashing
Winter Hill Reception Across Shadsworth
Located approximately 12 miles south-south-west, the Winter Hill mast delivers primary Freeview signals to East Lancashire. Local topography and building elevation dictate precise aerial choice.
Elevated Ridge Line of Sight
Upper sections of Shadsworth Road and Brodick Road enjoy clear sightlines toward Winter Hill on a 196° bearing, yielding strong direct signals suitable for compact wideband or loft aerials.
- ✓ Unobstructed Winter Hill line of sight
- ✓ High signal margin (65dBuV+)
- ✓ Suitable for discreet loft installation
Valley Dips & Shadow Zones
Lower-lying properties dipping toward Haslingden Road or heading towards Intack can experience signal attenuation and multipath reflections caused by local rooflines.
- ✓ High-gain multi-element aerials required
- ✓ Elevated chimney mast to clear roof ridges
- ✓ Masthead pre-amplification if splitting
Winter Hill Polarisation
Winter Hill broadcasts all digital multiplexes on horizontal polarisation. Elements must be mounted strictly horizontal and levelled with spirit levels to prevent cross-polarisation loss.
- ✓ Strict horizontal element orientation
- ✓ Negligible cross-polarisation degradation

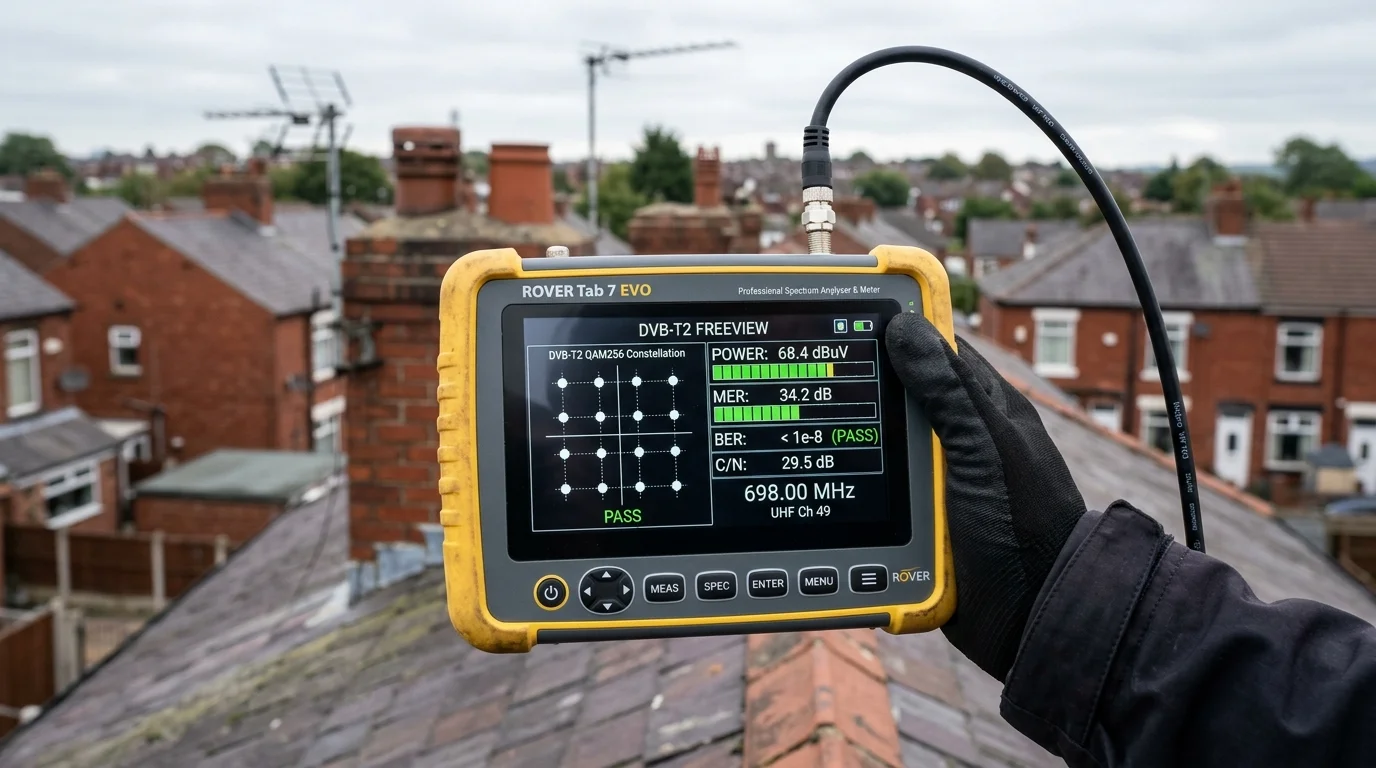

- ✓ Verified with Rover spectrum meter
Solving 4G & 5G Mobile Mast Overload
High-power cellular base stations along Haslingden Road broadcast in the 700MHz and 800MHz bands, causing digital Freeview receivers to stutter and pixelate.
700MHz High-Rejection SAW Bandpass Filters
The clearance of UHF channels 49 to 60 for mobile 5G services means that unshielded domestic aerials pick up powerful cellular signals alongside Freeview broadcasts. We install commercial-grade 700MHz filters that attenuate mobile frequencies by over 45dB while passing Freeview channels with minimal insertion loss.

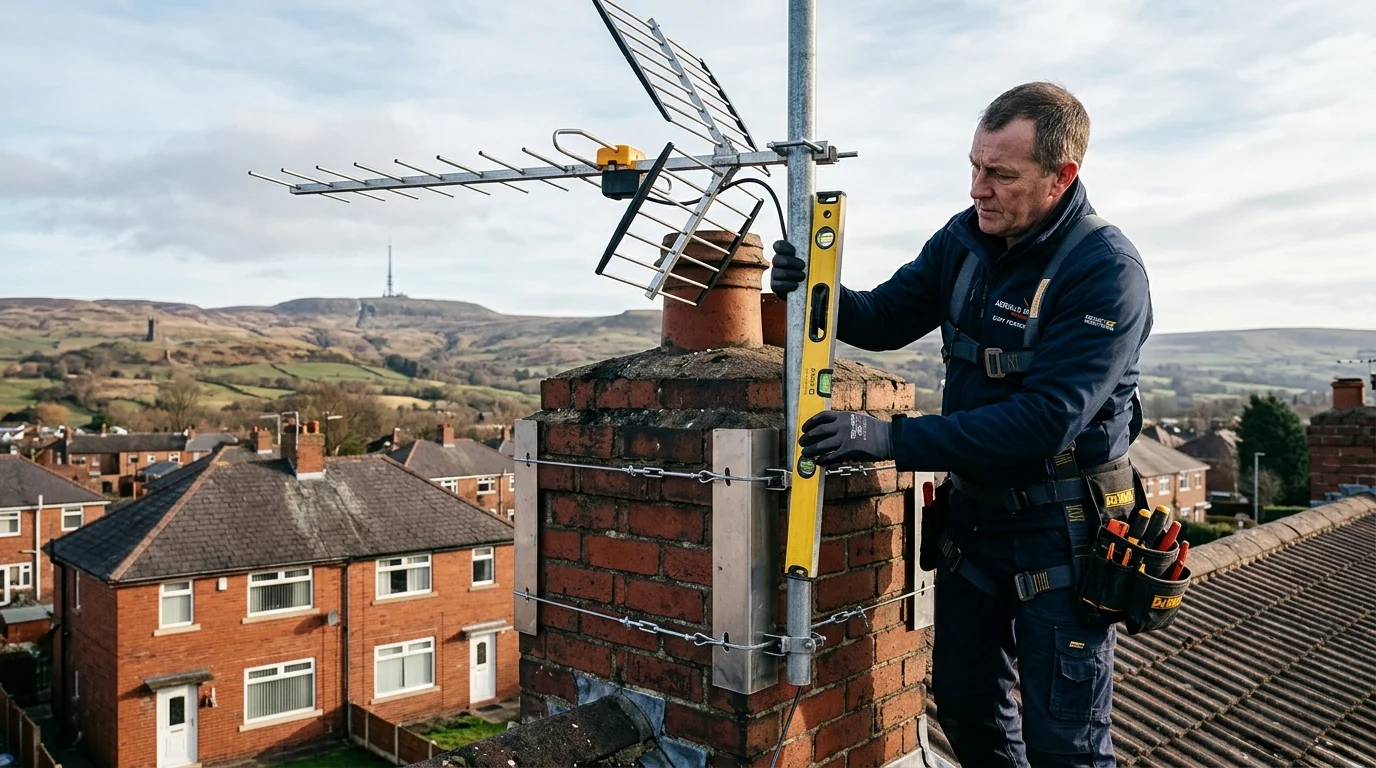

Non-Drill Chimney Lashing & WF100 Cabling
East Lancashire weather brings strong Pennine gales. We install heavy galvanised steel cradle brackets secured around chimney stacks with high-tensile stainless steel wire. No masonry drilling into delicate flues, and cabling is strictly bench-marked WF100 double-screened pure copper.
Benchmarked Equipment Standard
We exclusively install trade-grade, bench-marked hardware designed for long operating life in Lancashire weather conditions.
High-Gain Digital Array
Group T / Wideband directional digital aerial with tuned reflector grid and sealed balun box.
14.5dBi Forward Gain700MHz LTE Filter
Die-cast zinc alloy inline filter rejecting 4G and 5G cellular frequencies above 694MHz.
>45dB RejectionWebro WF100 Pure Copper
Double-screened coaxial cable with pure copper foil and dense copper braid shield.
Zero CCS / Zero CCAPennine Storm Cradle
Hot-dip galvanised chimney lashing bracket with 7-strand stainless steel wire system.
90mph Gale RatedOur 5-Stage Aerial Protocol
Every aerial installation carried out by Gary Pearce adheres to strict safety, alignment, and signal calibration standards.
Signal Survey
Spectrum analysis on roof or in loft to determine peak Winter Hill signal strength and local LTE noise levels.
Mounting
Installing heavy-duty chimney lashing cradle or heavy gable bracket using non-drill stainless steel fixings.
Alignment
Precision azimuth alignment to 196° SSW, horizontal leveling, and locking mast clamps at peak signal margin.
WF100 Cabling
Routing double-screened WF100 copper coaxial down mortar lines with silicone-sealed drip loops and entry grommets.
Outlet Audit
Testing signal at every TV socket, re-tuning Freeview HD channels, verifying 1080p picture quality, and clean-up.
Shadsworth TV Aerial Packages
All prices from canonical trade guidance. Includes CAI-benchmarked equipment and double-screened WF100 cable, £10M insurance and 5-year guarantee.
Standard Digital Aerial
Ideal for replacing weathered aerials or fitting a new loft antenna in good reception zones of Shadsworth.
- ✓ Wideband digital TV aerial
- ✓ Single room WF100 cable run
- ✓ Winter Hill alignment & TV retune
- ✓ 5-year structural guarantee
High-Gain Pennine Mast
Engineered for exposed rooftops in East Lancashire. Heavy non-drill chimney lashing and high-rejection LTE filter.
- ✓ High-gain benchmarked digital aerial
- ✓ Non-drill stainless chimney lashing cradle
- ✓ Inline 700MHz 4G/5G interference filter
- ✓ Double-screened WF100 copper cable
Multi-Room Distribution
Deliver balanced, crystal-clear digital TV signals to 4 or more rooms with a fully shielded masthead distribution amplifier.
- ✓ High-gain aerial with masthead pre-amp
- ✓ 4-way shielded distribution amplifier
- ✓ Multiple independent WF100 room drops
- ✓ All TV outlets tuned and verified
Shadsworth & Surrounding Service Areas
Prompt local TV aerial repairs and new installations across all Shadsworth neighbourhoods, adjacent suburbs, and East Lancashire postal zones.
Frequently Asked Questions
Straightforward technical answers regarding digital TV aerials across Shadsworth and BB1.
Which TV transmitter provides Freeview digital coverage for Shadsworth BB1?
Shadsworth receives primary terrestrial television broadcasts from the Winter Hill main transmitter located approximately 12 miles south-south-west (bearing 196 degrees azimuth). Winter Hill transmits all Freeview and Freeview HD multiplexes on horizontal polarization.
Why do Freeview channels pixelate or freeze in homes near Haslingden Road?
Pixelation in Shadsworth often stems from 4G and 5G cellular masts operating along the Haslingden Road corridor and near the Royal Blackburn Hospital. Mobile transmissions in the 700MHz band overload wideband TV tuners. Installing a high-rejection 700MHz LTE inline filter eliminates this interference.
Can you install a new aerial without drilling into my brick chimney stack?
Yes. We use heavy-duty galvanised steel chimney lashing cradles secured by high-tensile stainless steel lashing wire wrapped around the brick stack with corner protective plates. This avoids structural drilling into masonry flues while withstanding 90mph Pennine storm gales.
What coaxial cable do you install to ensure clear TV pictures?
We install CAI-benchmarked double-screened WF100 pure copper coaxial cabling. WF100 features a solid copper central core, copper foil shielding, and dense copper braid, preventing signal loss and rejecting electromagnetic interference.
Can you feed Freeview television signals to multiple bedrooms in Shadsworth?
Yes. We install fully shielded 4-way, 6-way, or 8-way distribution amplifiers in the loft or utility space, distributing balanced, noise-filtered TV signals to every television point across your property.

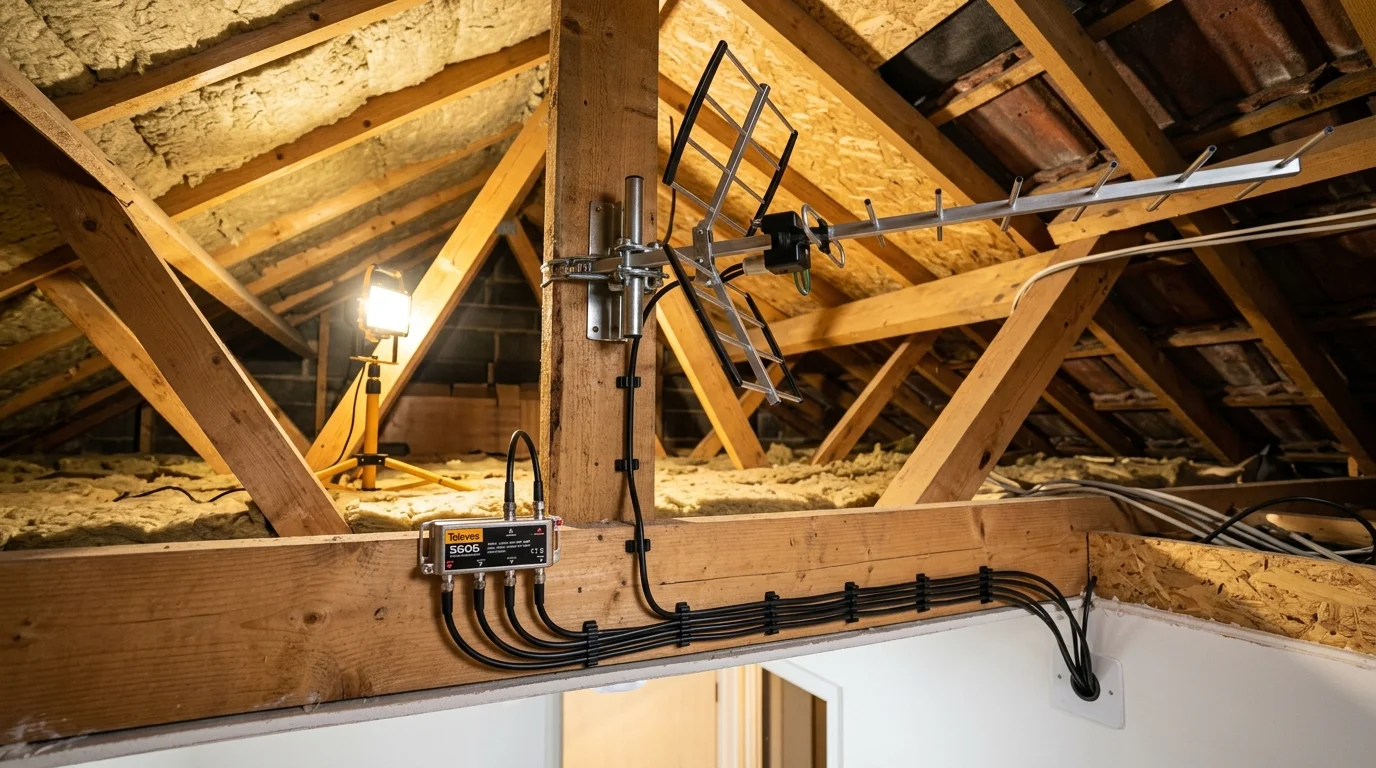

Can a digital TV aerial be fitted inside my loft space instead of on the roof?
Yes. In elevated parts of Shadsworth with unobstructed sightlines toward Winter Hill, a high-gain directional aerial installed inside the loft provides clear Freeview HD reception while protecting the equipment completely from weather degradation.
How do you align the aerial for maximum digital signal strength?
We use professional digital spectrum analysers to measure signal level in dBuV, Modulation Error Ratio (MER), and Bit Error Rate (BER) across all six Winter Hill multiplex frequencies, achieving optimal signal margin.
Do you repair storm-damaged aerials and snapped brackets in Shadsworth?
Yes. We offer prompt repair callouts across Shadsworth to replace storm-bent masts, sheared chimney lashings, waterlogged cables, and misaligned brackets following heavy Pennine winds.
What warranty and insurance do you provide on aerial installations?
Every installation carried out by Gary Pearce includes £10 Million Public Liability Insurance coverage and a comprehensive 5-year workmanship guarantee, backed by over 25 years of hands-on aerial and satellite experience.
How quickly can you attend for an aerial repair or installation in Shadsworth?
Being locally based right here in Blackburn, we routinely accommodate same-day or next-day appointments across Shadsworth, Brodick Road, Rothesay Road, Intack, and all BB1 postal areas.
